Sustain a Lean Improvement with a Process Control Plan

A welding-cell improvement can work during a Kaizen event and drift after a supervisor changes, a fixture moves, or a new operator joins the team. A process control plan makes the changed condition visible: what must stay true, who checks it, when to react, and how to confirm the correction. Use the plan to protect the specific gain and required safety and quality controls. Do not turn it into a generic audit score or assume that a lower setup time proves the process remains stable.

Choose the process condition that protects the improvement

Start with one process and the problem the team changed. If a welding-cell Kaizen reduced setup disruption, identify the fixture, approved work sequence, material location, training, and quality checks that made the new method work. If a 5S action moved a tool, specify its marked location and the reason the location matters. Avoid the word “sustain” without naming a condition that can be observed.

Separate the improved outcome from the method that supports it. A setup-time measure may show whether the change is holding. A point-of-use fixture check, first-piece record, and current work instruction may show whether people can repeat the approved method safely. Use both when they answer different questions. Keep customer specifications, the welding procedure, inspection requirements, equipment safeguards, and qualified-person requirements in the controlled system that owns them.

Write the baseline definition before setting a trigger. State the part family, shift, setup event, start and stop points, sample count, unit, and data owner. If the team did not collect enough stable observations for statistical limits, do not label a local reaction threshold a control limit. A trigger can still prompt an investigation, but its basis and limitations must be clear.

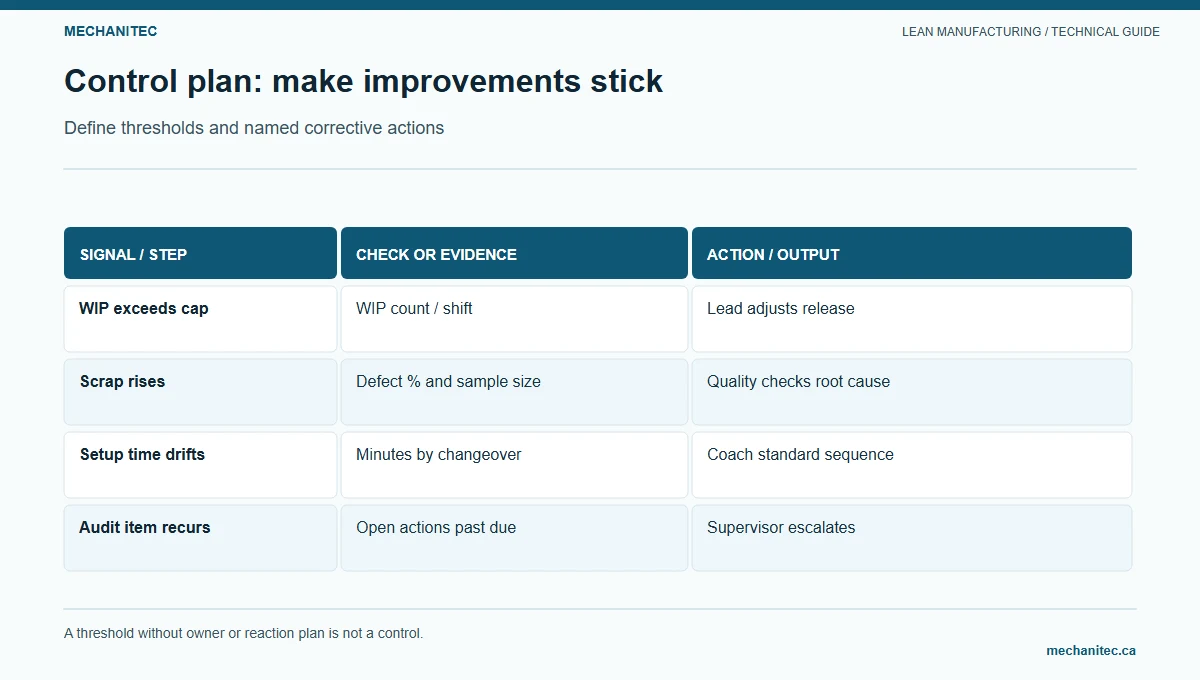

Build the post-Kaizen control plan

A control plan connects an important process condition to an observation and a response. Keep each row specific enough that an operator or supervisor can tell what to check and who can make the next decision. Define an owner for follow-up, not only for detecting a problem. If a reaction requires quality or engineering approval, name that role rather than asking an operator to make an unauthorized disposition.

Illustrative control plan for a welding station after an approved fixture-staging improvement

Process condition	Check and frequency	Owner	Trigger	Immediate reaction	Verify and close
Current approved fixture and instruction are available	At shift start and after a document revision	Cell lead	Wrong revision, missing fixture, or unclear method	Pause affected setup and contact the authorized process owner	Confirm correct controlled document and fixture before restart
Fixture remains in its marked, accessible location	At handoff and during the defined layered audit	Operator; supervisor verifies	Fixture is missing, obstructed, or stored outside its approved position	Find the cause and restore the approved location; do not use an unapproved substitute	Record the condition and check the next shift handoff
Required first-piece acceptance is complete	At each setup or changeover specified by the process	Operator and quality role specified by the control plan	Required result fails or record is missing	Contain affected work under site procedure and notify the quality owner	Resume only after documented authorized disposition
Setup follows the approved sequence	Record each defined setup; review trend weekly during the first month	Process owner	Local reaction threshold is exceeded or a step is skipped	Observe the next setup, confirm the data, and record the condition	Assign a cause and action; repeat observation after correction
Fixture and safety devices remain serviceable	Pre-use check and maintenance interval set by the approved process	Operator and maintenance	Damage, missing component, or failed safety check	Stop or secure work according to site procedure; call the responsible owner	Repair, inspect, and authorize return to service as required
Affected people can follow the current standard	After an approved revision, role change, or qualification change	Supervisor and training owner	Current instruction is unavailable or qualification is not confirmed	Assign qualified coverage and complete required training	Record training and verify the method at the point of use

This is a planning example, not an approved welding control plan. The responsible site must define the actual welding procedure, inspection, safety, customer, and document-control requirements. A Lean worksheet cannot replace a process-specific safety or quality approval.

Use a run chart to notice drift

A run chart places observations in time order so a team can see a trend, shift, or unusual point. Record one consistent measure, such as setup minutes for a defined fixture change on the same product family. Annotate the date the approved method changed, when affected shifts were trained, and any relevant event such as a maintenance repair or revision update. Keep the sample count with each point if a point represents several setups.

Illustrative example — fictional setup observations, not plant data: the table below demonstrates an annotated time sequence. It does not establish statistical control. The example uses four setup observations before a fixture-staging change and four after. The process owner should select an appropriate chart and method before using real data to make a control decision.

Illustrative run-chart data for a post-Kaizen setup measure — minutes per defined setup

Sequence	Setup time (min)	Process annotation	What the team records
Baseline 1	52	Approved prior method	Part family, shift, setup definition, sample count
Baseline 2	49	Prior method	Same start and stop points
Baseline 3	51	Prior method	Same product and measurement rule
Baseline 4	50	Prior method	Baseline median is 50.5 min for this example only
Change point	—	Approved fixture-staging method begins; affected shifts receive required instruction	Change date, revision, owner, and approval
Follow-up 1	46	New method	Continue observation; do not infer a lasting gain
Follow-up 2	44	New method	Verify same setup and quality checks
Follow-up 3	61	Unexpected rise; point is not a statistical signal by itself	Confirm measurement and observe the setup with the operator
Follow-up 4	48	New method after investigation is scheduled	Record cause and any authorized correction

The baseline median in this fictional set is (50 + 51) ÷ 2 = 50.5 minutes. The four follow-up values sort to 44, 46, 48, and 61 minutes, giving a median of (46 + 48) ÷ 2 = 47 minutes. That small example does not prove the process improved or stayed improved. The 61-minute point needs investigation; it is not a reason to invent a statistical limit or to blame the operator. Verify the measurement, method, product mix, equipment condition, and approved controls.

When the sample is small, use the chart as a conversation aid and collect more comparable points. A qualified person should decide whether a statistical process control chart is suitable, how to calculate limits, and whether the data meet its assumptions. Do not mix different setup types, shifts, or part families without labeling the change in the data.

Use layered audits to support the standard

An audit should verify the condition and help remove obstacles. It should not become a scorecard that rewards a perfect number while leaving a missing fixture or unclear instruction unresolved. Keep audit checks observable, short, and connected to the process risk. If a check fails, record what was seen, who owns the next action, and when the team will verify the correction.

Example layered-audit RACI for a post-Kaizen welding cell; adapt roles and cadence to site requirements

Review layer	Example timing	Responsible (R)	Accountable (A)	Consulted (C)	Informed (I)
Operator point-of-use check	At shift start and setup as specified	Assigned operator	Cell lead	Quality or maintenance when the check requires it	Process owner
Supervisor layered audit	Daily during the first week, then at the approved local interval	Supervisor	Production manager	Operator and process owner	Quality lead
Process-owner review	Weekly during the first 30 days, then based on risk and evidence	Process owner	Department manager	Quality, maintenance, and affected operators	Site leadership when escalation criteria are met
Quality-system review	At the interval and events required by the approved system	Quality representative	Quality manager	Engineering and production	Process owner

RACI means responsible, accountable, consulted, and informed. A person can hold more than one role where the organization allows it, but the plan should still identify one accountable owner for the action. The example timing is not a universal requirement. The responsible managers should approve a cadence that fits the process, risk, customer requirements, and evidence.

Respond to repeated findings

Use a reaction that protects the process and turns the finding into a specific action. If a noncritical fixture-location issue appears in two consecutive local audits, an illustrative site rule might require the supervisor to assign an owner during the shift and review the cause within one working day. That one-day response is an example of a local rule, not a general welding or safety standard. More serious issues follow the site’s immediate stop, containment, reporting, and escalation procedures.

1. Confirm that the observation and revision are correct.
2. Protect people, product identification, and required quality checks.
3. Observe the work and ask what condition made the approved method difficult to follow.
4. Assign the action to a named process, maintenance, quality, training, or document owner.
5. Set a due time and define the evidence that will show the issue is resolved.
6. Repeat the check after the correction and update the controlled standard if approved.

Do not treat every deviation as a training problem. The fixture may be stored too far from point of use, the mark may be unclear, the standard may be outdated, or the planned method may not fit actual work. Ask the people doing the job to help test the cause and the fix. If the required process changes, use the site’s change-control and qualification path before making the new method standard.

Use staff changes as a review trigger

Turnover and role changes can expose a weak handoff. In a NIST MEP case, Woodside Industries reported that Lean practices had declined over time as experienced staff left and new people joined; the company later received additional Lean training for 15 employees. This source illustrates why training and method review may need to recur. It does not report a welding-cell control plan or prove that an audit schedule prevents drift.

When an operator, supervisor, or process owner changes, verify that the current instruction, qualification record, fixture location, reaction path, and escalation contact remain clear. Invite new and experienced staff to point out unclear steps. Update only the approved document and training record; do not rely on informal memory as the process control.

Keep this plan distinct from daily management

A control plan answers how a process owner detects drift in a particular changed condition and restores the approved method. A daily management routine is broader: it organizes regular team review, escalation, and follow-up across several measures or work areas. The companion daily management guide covers the operating rhythm. This article focuses on the welding-cell control, trigger, reaction, verification, and document update.

For a repeatable area-condition checklist and follow-up assignments, use the 5S audit guide. A 5S score alone does not replace a process-specific control plan; connect the audit finding to the actual process condition and its owner.

Start the control plan

1. Name the process, product family, improvement, and measure the team intends to sustain.
2. Record the approved baseline, method, revision, and evidence source.
3. Define a practical trigger without claiming unsupported statistical limits.
4. Assign one process owner and name the roles that must respond.
5. Set an initial verification cadence and a review date after the first 30 days.
6. Write the immediate reaction, escalation route, and closure evidence.
7. Review the first drift or repeat finding with operators before revising the standard.

Record the first observation, its definition, and its owner. That gives the next supervisor a clear starting point and gives the team evidence to decide whether the improvement has held.

Sources

• Lean Enterprise Institute: Standardized Work — describes a shared work sequence and standard inventory as a basis for current process control and improvement.
• Lean Enterprise Institute: Kaizen — describes checking results, following up, and standardizing a demonstrated improvement.
• Lean Enterprise Institute: Leader Standard Work — describes regular management activities that support problem solving and accountability.
• NIST MEP: Lean Training and Implementation Pays Off in Big Results — Woodside Industries case describing practice erosion after attrition and new hires and later training; it is not evidence for the illustrative welding data.
